型號 : RS-007A SERIES

數量 :

加入詢價車

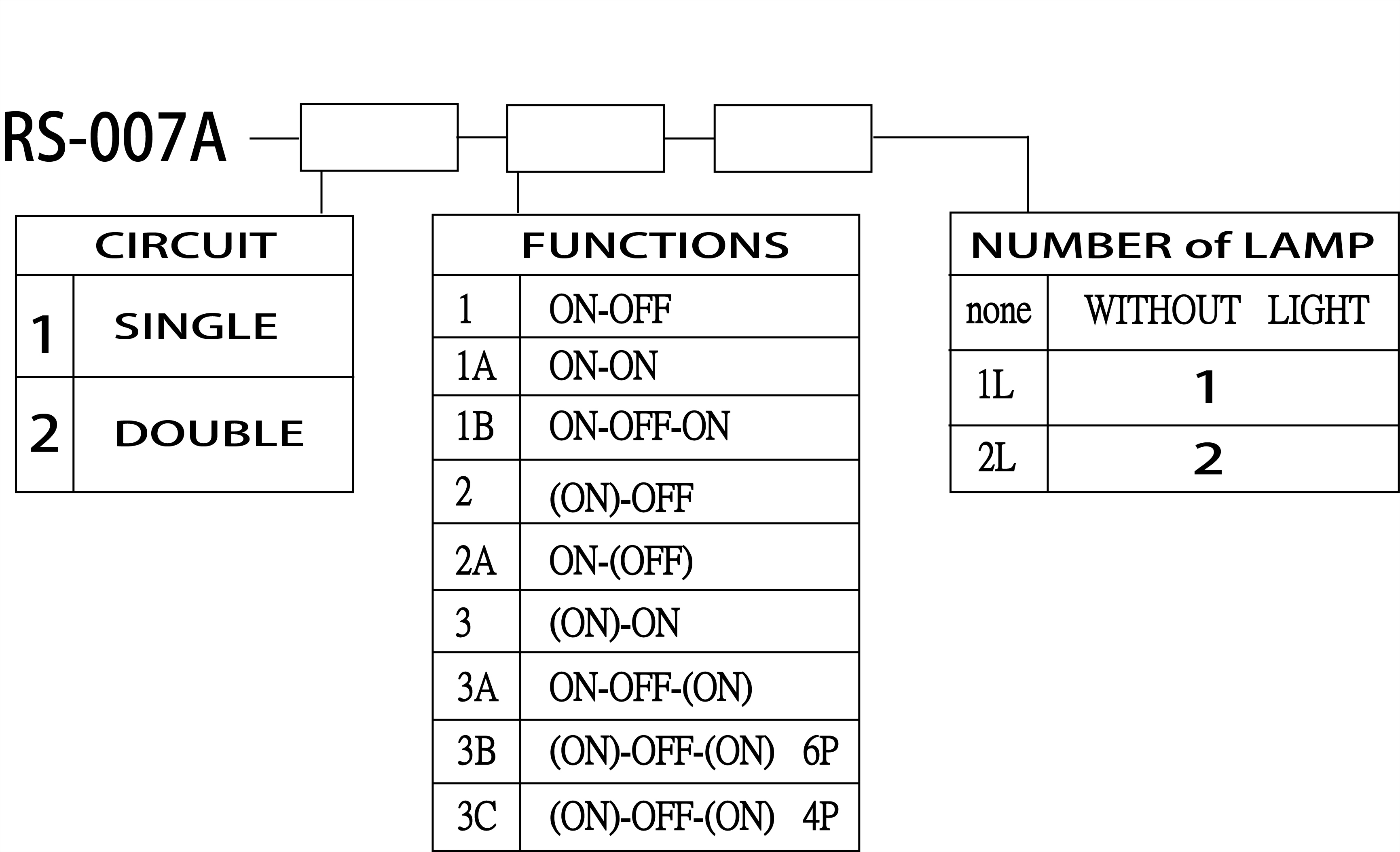

編碼原則



RS-007A - __ -    /    -

1. 確認回路數: 一迴路 (1)  二迴路 (2)

2. 確認開關型式:  1: ON-OFF    1A: ON-ON  1B: ON-OFF-ON   2: (ON)-OFF  2A: ON-(OFF)

                               3: (ON)-ON   3A: ON-OFF-(ON)   3B: (ON)-OFF-(ON)

3. 帶燈數: NONE: 不帶燈     1L: 1個燈      2L: 2個燈



1. RATING    (額 定 值) :16A  12VDC

2. CONTACT RESISTANCE (接觸電阻):30 mΩ MAX.

3. INSULATION RESISTANCE (絕緣電阻):100 MΩ MIN.

4. DIELECTRIC STRENGTH (耐電壓):AC 1500V / 1MIN.

5. OPERATING FORCE (作動力):400±200 gf

6. LIFE TEST (電氣壽命試驗):10000 CYCLES
